WHIRLPOOL BATH

---

Whirlpool bath is a great source of relaxation and helpsto improve blood circulation. Mainly used for relaxation and medical assistance.

A whirlpool is a tub fixed with piping, an electric pump and water jets. The pump circulates the water through the pipes using an underwater suction with several water jets. Each jet contains venturi, a vented construction near its opening that injects air into the water. In most cases in each jet, the ratio of air into water is adjusted at a central control.

BENEFITS OF WHIRLPOOL BATH

---

It's a natural remedy for numerals ailments

High pressure water jets 2 massage skin and stimulate blood circulation

relaxes body and mind spa

---

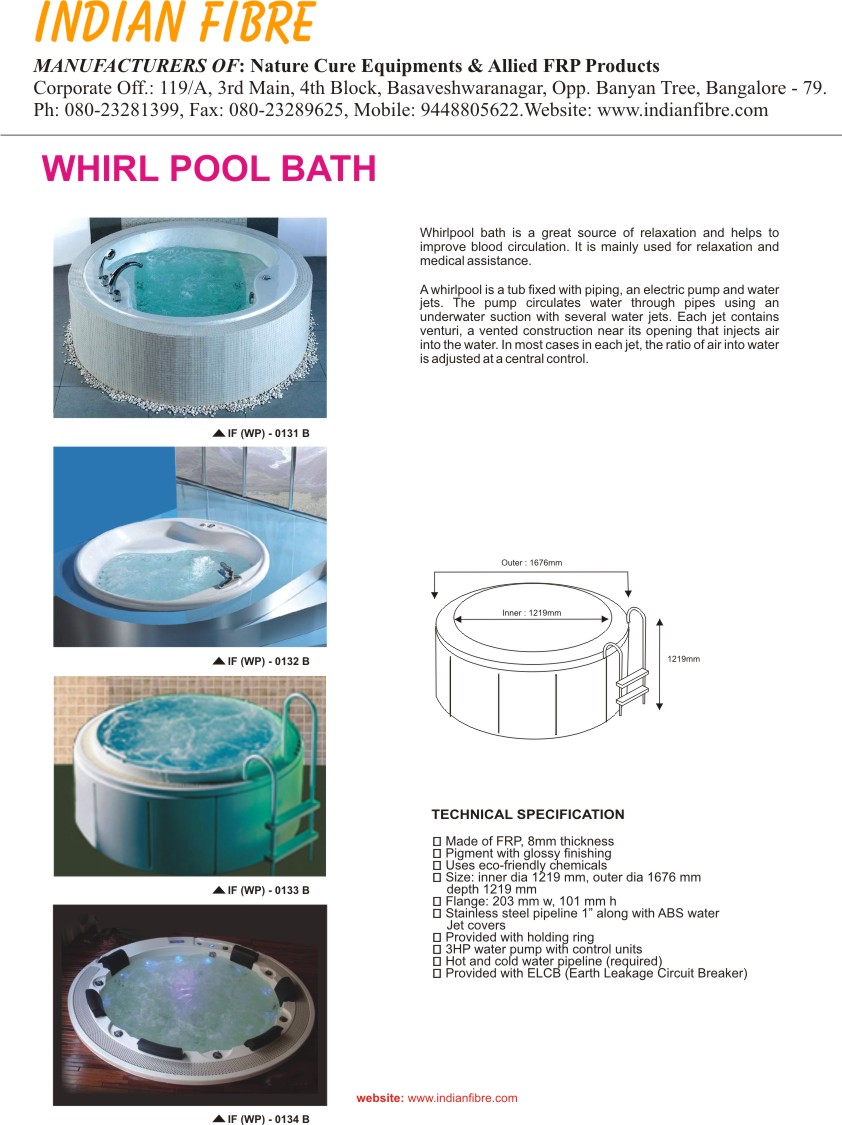

DOWNLOAD PDF

TECHNICAL SPECIFICATION

---

• Made of FRP, 8mm thickness.
• Pigment with glossy finishing.
• Using eco-friendly chemicals.
• Size: inner dia 4ft depth 4ft outer.
• Flange 8w 4h
• Total outer dia, flange of tub 4.8.
• Stainless steel pipeline 1 along with ABS water Jet covers.
• Providing holding ring
• 3HP water pump with control units
• Provide with ELCB (Earth Leakage Circuit Breaker)

REQUIREMENT FOR INSTALLATION

---

• Size – 12'*12' with shower.
• Electric load - 15 AMPS
• Plumbing & Sanitary provide 2" hot & cold water line
• Digital control panel.
• Freeze protection.
• Flow protection.
• Auto water fitting system.
• Control panel backlight.
• Ozone system.
• Water massage pump.
• Feet massage.
• Shoulder massage.
• Safety suctions.
• Air control valve.
• Made of Acrylic bath tub using eco friendly food grade material.
